Technological breakthroughs

Background and Significance

Phosphate rock and the element phosphorus have been designated as critical minerals by a growing number of countries — including Canada, the United States, and the European Union — reflecting increasing concern over the security of apatite supply. While the fertilizer industry accounts for approximately 85% of global phosphate demand, the battery sector — particularly lithium iron phosphate (LFP) batteries for electric vehicles — is generating rapidly growing demand that places new competitive pressure on this resource.

Phosphate ore is mined from both sedimentary and igneous rocks. Sedimentary deposits account for approximately 90% of global production; however, beneficiated igneous phosphate ore achieves higher P₂O₅ grades (35.4–38.7%, compared with 29.7–31.5% from sedimentary sources) and contains fewer harmful impurities — a significant advantage for green technology applications.

The Bégin-Lamarche Deposit: Geological Setting

The Bégin-Lamarche deposit is a newly discovered igneous phosphate deposit located in the central Grenville Province, Quebec, Canada, approximately 280 km north of Québec City and 75 km northwest of Saguenay. It is hosted within the Lac-Saint-Jean Anorthositic Suite (LSJA), dated at approximately 1,157–1,142 million years ago — one of the largest anorthosite massifs in the world, covering around 17,000 km².

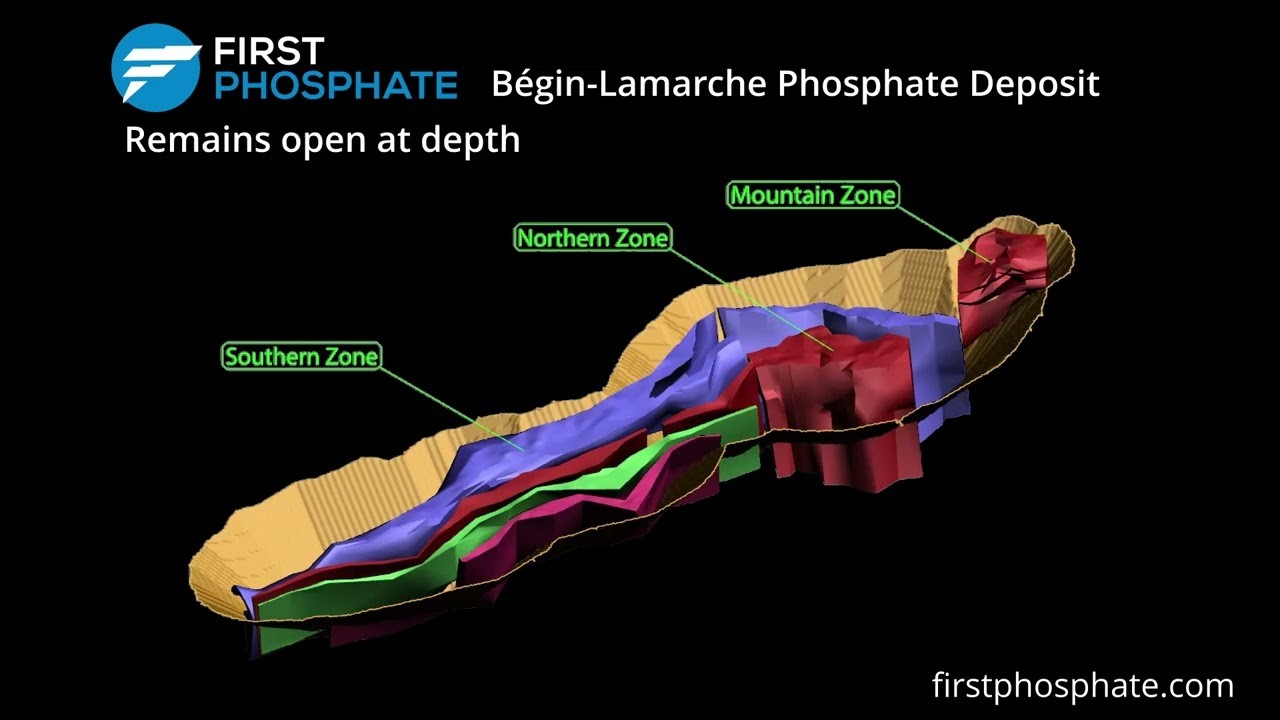

The deposit extends approximately 2.5 km along a north-northeast to south-southwest axis, with a thickness of 200 to 400 m, and is subdivided into three zones: South, North, and Mountain. Total inferred mineral resources are estimated at 214 million tonnes at an average grade of 6.0 wt% P₂O₅. Grade increases progressively from the South Zone (5.6%) to the North Zone (7.0%) and the Mountain Zone (8.6%).

The deposit comprises multiple interlayered sequences of two principal mineralized rock types: oxide-apatite ultramafic rocks (OAUM, containing less than 10% plagioclase within the silicate assemblage) and oxide-apatite mafic rocks (OAM, containing more than 10% plagioclase), interlayered with unmineralized anorthosite and leuconorite.

Mineralogy and Geochemistry

The most distinctive feature of the deposit is the exceptionally high fluorapatite content of the OAUM rocks, ranging from 18 to 86 vol%, substantially higher than in the OAM rocks (up to 26 vol%). This is an unusually high apatite abundance, comparable to or exceeding that of typical nelsonite (approximately 30–40% apatite).

Both the OAUM and OAM rocks contain variable proportions of olivine, orthopyroxene, amphibole, biotite, ilmenite, and magnetite. Sulfide minerals account for less than 1 vol% — an environmentally favorable characteristic. Concentrations of toxic metals in fluorapatite are very low: lead ≤11 ppm, thorium ≤2 ppm, and uranium ≤2 ppm.

Fluorapatite in the deposit is low in chlorine: approximately 81% of analyzed samples contain chlorine at ≤1,000 ppm, well below the current commercial threshold of 1,400 ppm. This is a critical advantage, as chlorine is corrosive to processing equipment and cannot be removed prior to phosphoric acid production — the mandatory intermediate step before phosphate is used in agricultural, food, medical, and LFP battery applications.

Ore-Forming Mechanisms

The study identifies three principal geological mechanisms governing the formation of the deposit.

First, the role of plagioclase in magmatic crystallization. Mineralogical evidence indicates that apatite crystallized in large volumes during the early stages of magma crystallization — when plagioclase was absent or nearly absent from the crystallizing assemblage. The absence of plagioclase maintained high calcium concentrations in the magma. This elevated calcium content kept the P₂O₅ level low enough to sustain apatite saturation, thereby enabling apatite to crystallize in large volumes over a prolonged period. As plagioclase appeared later in the crystallization sequence, apatite abundance in the OAM rocks decreased progressively.

Second, pressure and redox conditions. The low Al₂O₃ contents (0.88–2.47 wt%) of orthopyroxene in the mineralized rocks indicate that the magma crystallized at mid- to low-crustal levels, at pressures of ≤3.1 kbar, equivalent to depths of ≤11.7 km. The low mole fraction of hematite in ilmenite (Xhem ≤0.06) and the absence of hematite exsolution lamellae in ilmenite indicate that the deposit formed under relatively reducing conditions (∆log fO₂(FMQ) ≈ 0 or lower).

Third, the mechanism controlling chlorine content in fluorapatite. The study identifies a positive correlation between chlorine content in fluorapatite and the Mg# of coexisting orthopyroxene — the reverse of the trend observed at other phosphate deposits such as Lac à l'Orignal. This indicates that chlorine in fluorapatite decreased progressively with magmatic differentiation. The large volume of early-crystallizing apatite consumed a substantial portion of the magma's chlorine budget, leaving later-stage fluorapatite with lower chlorine concentrations. This relationship has important practical implications: the Mg# of orthopyroxene can serve as an exploration tool for identifying low-chlorine phosphate ore zones within this deposit type.

Comparison with Other Phosphate Deposits

Relative to igneous phosphate deposits currently being mined worldwide — principally from carbonatites and associated alkaline rocks in South Africa, Russia, Brazil, and Finland — ore from the anorthosite-hosted deposits of the Grenville Province exhibits distinctive quality advantages. Average concentrations of lead, thorium, uranium, and total rare earth elements in apatite from these deposits are significantly lower than in carbonatite-hosted apatite globally. This reflects the nature of the ferrodiorite melt that sourced the anorthosite-hosted deposits, which inherently contains lower concentrations of incompatible elements than evolved carbonatite melts.

Other anorthosite-hosted deposits in the Grenville Province — Lac à l'Orignal, Lac à Paul, Lac Mirepoix, and Grader — display similar apatite geochemical signatures, confirming that this is a consistent characteristic of the deposit type rather than a feature unique to Bégin-Lamarche.

Potential as a Source of High-Quality Phosphate

The Grenville Province hosts numerous massif-type anorthosite bodies containing abundant iron-titanium oxide and apatite mineralizations associated with mafic intrusive bodies in the form of lenses, dykes, and layered intrusions. In addition to Bégin-Lamarche, the Lac à Paul and Sept Iles (Mine Arnaud) deposits are at various stages of development. Notably, one of the key constraints at Sept Iles is that fluorapatite concentrate from the deposit exceeds the commercial chlorine threshold (>1,400 ppm), whereas 81% of analyzed samples from Bégin-Lamarche fall below 1,000 ppm — a clear competitive advantage.

With confirmed mineral resources, ore quality that meets market requirements, and low impurity levels consistent with increasingly stringent environmental standards, the Grenville Province is assessed as having considerable potential to become a significant source of high-quality igneous phosphate to meet near-future global demand — particularly as competition between the fertilizer and electric vehicle battery sectors continues to intensify.

Source: Banerjee, S., Pufahl, P.K., Dare, S.A.S., Arguin, J.-P. (2026). Genesis of high-quality igneous phosphate ore from anorthosite-hosted mafic and ultramafic rocks of the newly discovered Bégin-Lamarche Fe-Ti-P deposit, Grenville Province, Canada. Ore Geology Reviews, 190, 107138.
